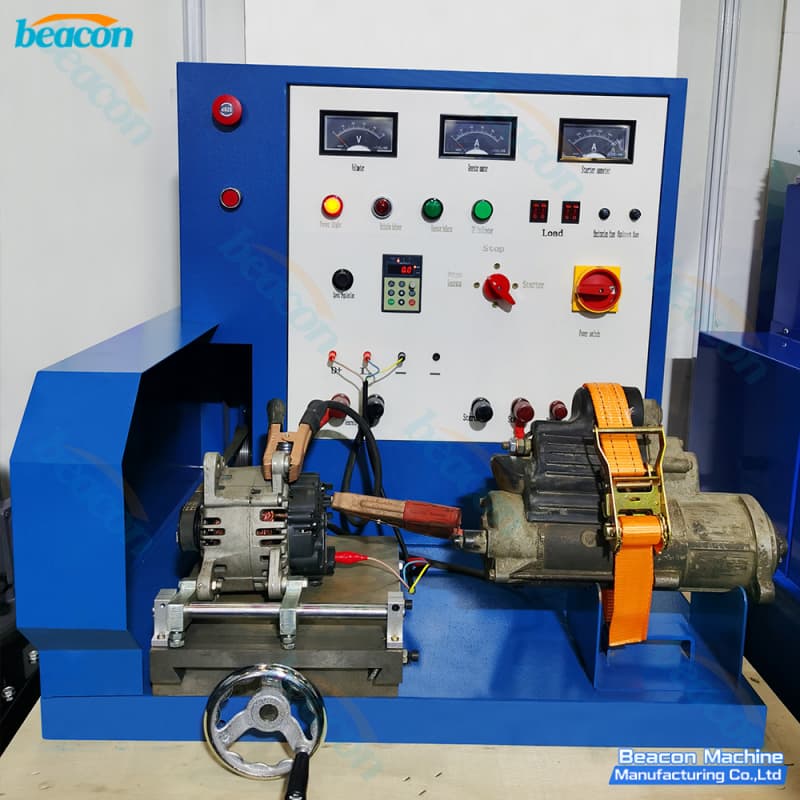

Delivering unparalleled precision for modern repair centers, the BCZY-2D is a state-of-the-art Auto Electrical Test Stand engineered for efficiency.
Unlike traditional analog units, this advanced computerized alternator and starter test bench automatically captures and analyzes performance data,
ensuring accurate diagnostics for a wide range of vehicles.
Designed as a versatile 12v 24v rotating electrical machine tester, it comprehensively evaluates voltage, current, RPM, and torque under simulated loads.

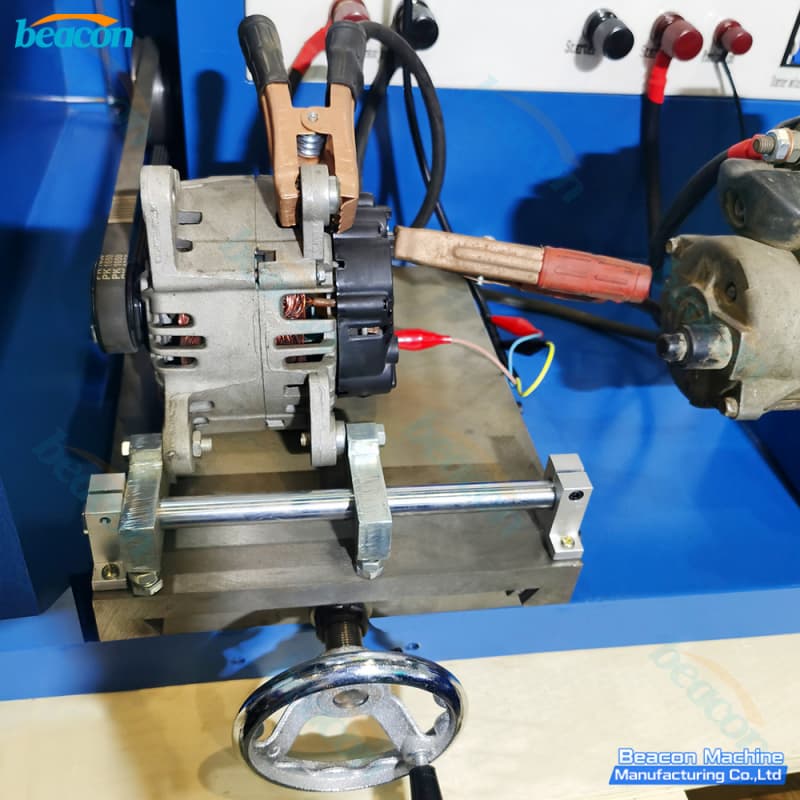

Its heavy-duty clamping system and intuitive digital interface make checking generators, regulators, and starter motors faster and safer, completely
transforming your automotive electrical rebuilding and quality control process.




| Specification Item | Parameter Details |
| Model | BCZY-2D |
| Applicable Voltage | 12V / 24V DC |
| Drive Motor Power | 7.5KW (High-efficiency Motor) |
| Working Power Supply | 380V / 50Hz, 3-Phase (Customizable for global markets) |
| Speed Range (RPM) | 0 - 8000 RPM (Stepless Speed Regulation) |
| Alternator Max Load Current | 200A (12V) / 100A (24V) |
| Starter Max Test Current | 0 - 2000A |
| Starter Braking Torque | 0 - 200 N.m |
| Control System | Advanced Computer System with Data Storage/Printing |
| Load Method | High-power Electronic Module Continuous Load |
| Starter Test Items | No-load, Load, Braking torque, Solenoid valve pull-in |
| Machine Dimensions | Approx. 1750mm x 900mm x 1500mm |
